Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Leader OPUS
  • Model Number: LD8250
  • Type: Insulation Sheet
  • Material: Silicone filled ceramic
  • Application: High Temperature
  • Tensile Strength: 0.42Kn/m
  • Thermal conductivity: 2.5w/m.k
  • Natural Tacky: Both sides
  • Color: Yellow
  • Thickness: 0.5-5.0mm
  • Standard size: 200*400mm
  • Breakdown Voltage: ≥5.0 Kv/mm
  • Continuous Use Temp.: -40-150°C
  • Die-cutting: Available
  • RoHS,Reach: Yes
  • Flame rating: V-0

Packaging & Delivery

Packaging Details with release liner,and at customer's request
Delivery Time 3-5days

Features&Benefits:

  1.High thermal conductivity

  2.High conformability and softness
  3.Naturally tacky
  4.Electrically insulating
Typical Application:
  1.Between electronic components such as Semiconductor,IC, CPU.MOS and heatsink.
  2.Telecom and communication devices, LCD TV, Telecom device,wireless
Hub,NB,PC,notebookds,etc
  3.Cooling module, in all applications where a metal housing is used as heatsink
Configurations:
 ·Standard size for sheet form:200x400mm
 ·Thickness:0.5-5.0mm
 ·With or without PSA
 ·Could be die-cut or pre-applied to heat sinks



Typical Properties of Gap Pad LD8250

Property

Unit

Metric Value

Test Method

Color

***

all

Visual

Thickness

mm

0.5~5.0

ASTM  D374

Density

g/cc

3.0

ASTM  D792

Hardness

Shore C

25±5

ASTM  D2240

Tensile Strength

KN/m

0.42

ASTM  D412

Continuous Use Temp.

°C

-40-150°C

EN 344

Electrical

Breakdown Voltage

Kv/mm

≥5.3

ASTM  D149

Volume Resistivity

Ω.cm

3.2×1016

ASTM  D257

Flame rating

V-0

V-0

UL  94

Thermal

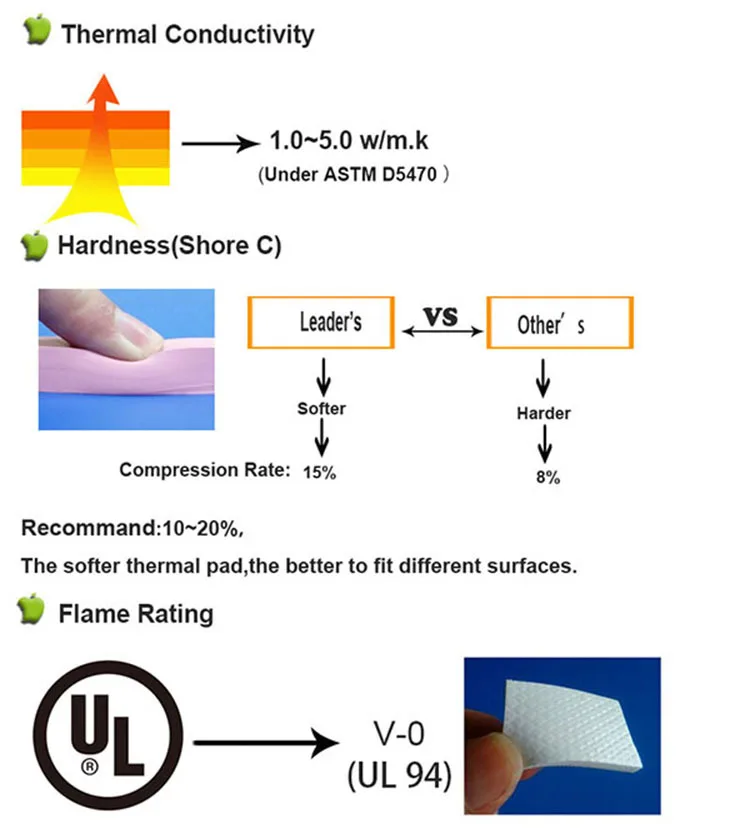

Thermal Conductivity

W/m.k

2.5

ASTM D5470



Q:What’s the thermal conductivity test method given on the data sheet?
A: All the data in the sheet are tested out by the third party. ASTM D5470 is utilized to test the thermal conductivity.

Q: How to find a right thermal conductivity for your application?
A: It depends on the watts of power source, ability of heat dissipation. For any customers, please contact us for the technical support.

Q: Are thermal pads offered with tacky?
A: Yes, all the thermal pads have its inherent tacky. All the models are natural tacky for two sides, except for the LD8100U,only one side has natural tacky.

Q: Are thermal pads reworkable?
A: It’s depend on the application and the pad being used. Thermal pads have been reused before, however,it’s up to the judgment of product designer, to see whether the pads could withstand reuse.

Q:Will the heat make the thermal pads softer?
A: From -60-150,there is no significant change in the hardness of thermal pads, as gap filler.

Q: What’s the tolerance for the thickness?
:Normally ±10%.

Q: Are the thermal pads electrical insulating?
A: Yes, all thermal pads are electrically isolated.

Q: What’s the shelf life for thermal pads?
A: Shelf life for thermal pad is one year after the date of manufacture. For the pads with adhesive, the shelf life is 6months after the date of manufacture. After these dates, all the characters should be retested.

Q: Can the thermal pads be with fiberglass?
A: YES, we could have thermal pads with fiberglass center to improve customer specific requirements for the tensile strength.LD8100U has fiberglass on its surface, all other models will be made at your requirement
